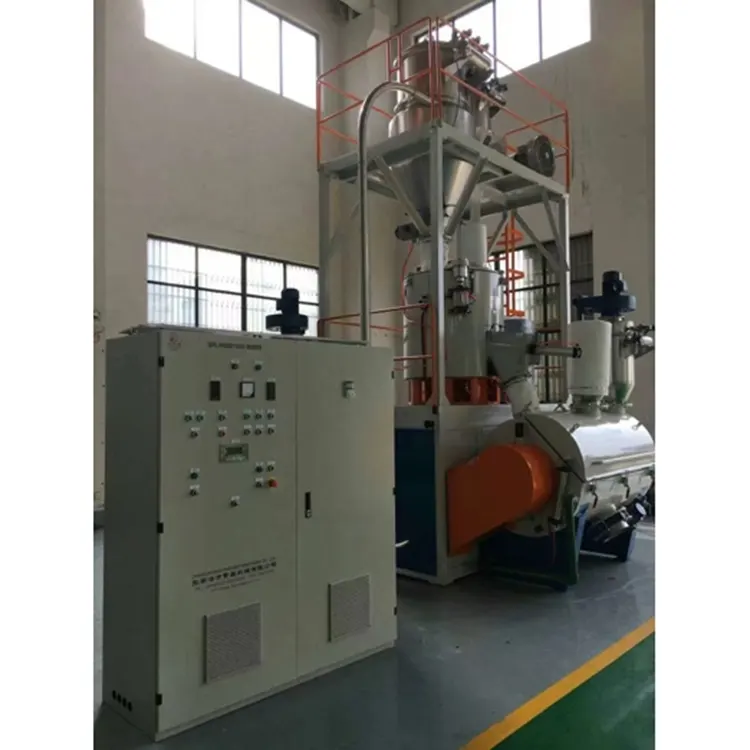

As a key equipment in the pre-processing stage of plastic manufacturing, the China SRL-W Series Vertical mixers supplied by FANCHANG Machinery can perfectly adapt to the processes of ingredient blending, mixing, drying, and coloring for various plastics. Especially for the core requirements of melting and plasticizing, as well as moisture removal, it provides an efficient solution. Whether it is continuous operation on large-scale production lines or batch processing by small and medium-sized manufacturers, they can demonstrate value through their flexible adaptability, helping enterprises reduce overall usage costs, minimize raw material and auxiliary material losses, and enhance competitiveness through better overall production efficiency throughout the product lifecycle.
In terms of the mixing structure design, the unit adopts multiple layers of specially customized blades, which are mounted on the central shaft. Through high-speed rotation, it creates a strong shearing, impact and scattering effect on the materials. The intense friction between the material particles, between the particles and the blades, and between the particles and the machine wall will generate sufficient self-generated heat. Combined with the heating design of the body jacket, it achieves rapid and uniform heating effect, avoiding the problem of local overheating or uneven heating that may cause material deterioration, and significantly shortening the process cycle.
The body of the SRL-W Series Vertical mixers is equipped with an accurate temperature control system, which can precisely adjust the temperature parameters according to the characteristics of different materials, meeting diverse processing requirements. At the same time, it is equipped with an efficient circulating dehumidification and dust removal function, which can not only ensure that the material moisture content meets the standard, but also reduce dust pollution during the production process, conforming to environmental protection production requirements. The equipment supports flexible selection of auxiliary equipment such as negative pressure vacuum feeding, screw feeding, pipe chain conveying, etc., and is combined with plastic mechanical accessories such as silos, vibrating screens, liquid oil scales, and level meters, which can build a complete blending and conveying system, improving the level of automated operations.
For over 30 years, Fanchang Machinery has been deeply engaged in the field of plastic mixing equipment. It has accumulated rich practical market experience. The "Fanhui" brand SRL-W unit, from design, production to testing, strictly follows international advanced standards at every process to ensure product quality stability. With mature manufacturing processes and supply chain management, while ensuring that the equipment performance meets the standards, it offers more competitive prices, achieving the dual advantages of "high performance and high cost-effectiveness", allowing enterprises to upgrade their production equipment without incurring high costs.
We have been deeply involved in the domestic and international markets for many years, familiar with the production standards and environmental protection requirements in different regions. Our products not only meet the process needs of domestic plastic processing enterprises, but also can adapt to the compliance indicators of the overseas market. The comprehensive pre-sale adaptation solution design, mid-sale installation and commissioning guidance, as well as post-sale maintenance guarantee, enable customers both at home and abroad to use them with peace of mind. This is the core strength behind the continuous global sales of our products.
The main shaft sealing device of the SRL-W Series Vertical Mixers has successfully obtained a national patent. It is made of high-quality sealing materials and features a scientific structural design, which can effectively prevent material leakage and lubricating oil infiltration, reduce the wear of sealing components, extend the service life of the equipment, lower the frequency and cost of subsequent maintenance, and ensure the long-term stable operation of the equipment.
The hot-mixing stage adopts a dual-function design of self-friction and electric heating. It can be flexibly switched according to the properties of the materials and process requirements. It can not only save energy by relying on self-friction heating, but also precisely control the temperature through electric heating, balancing energy conservation and process compatibility, and meeting the heating needs of different materials.
The lid of the pot adopts a double-sealing structure combined with an air-powered opening method. The sealing effect is far superior to that of the traditional single-sealing design. It can effectively prevent dust from leaking out and heat from escaping, ensuring a clean production environment and high heating efficiency. The air-powered opening design is convenient to operate, reduces the labor intensity of manual work, and is suitable for the rhythm of automated production.
Optional simple feeding system and pulse dust removal device are supported. The feeding system can simplify the material feeding process, reducing manual intervention and material loss. The pulse dust removal device has a higher filtration accuracy, which can further optimize the environmental protection level of the workshop and help enterprises easily meet strict environmental protection inspections without the need for additional investment in setting up dust removal facilities.
