SRL-W Series Vertical Mixers Unit – High Efficiency Industrial Vertical Powder & Plastic Mixing Equipment

The vertical mixing unit produced by Fan Chang Machinery is composed of an upper hot mixing pot (high-speed mixer), a lower cold mixing pot (cooling mixer), an automatic feeding system and a PLC electrical control system. The hot mixing pot body is made of high-quality stainless steel, with a smooth and wear-resistant inner surface. The pot cover is equipped with double sealing, and is connected by an air cylinder for lifting, effectively preventing dust from spilling out. The stirring blades are specially designed, made of wear-resistant stainless steel, driven by a belt transmission, and driven by a selected major brand motor. It can cause the materials to generate vortices under high speed, rapidly increase the temperature through self-friction or supplemented by electric heating, allowing the additives to fully penetrate the PVC resin. The cold mixing adopts a vertical structure, with a cooling water ring circulation inside the pot body, combined with a large-angle stirring blade, allowing the hot materials to roll and cool inside the pot, quickly discharging residual gas, preventing agglomeration, and reducing the material temperature to a storage or transportation temperature (usually below 40-50℃). The control system uses PLC and human-machine interface (touch screen) control, with high automation level. It can preset process parameters to achieve the entire process automation from feeding, mixing, temperature control, time control to automatic discharge.

Our SRL-W Series Vertical Mixers Unit series includes products such as SRL-W Series Vertical Mixers, Auxiliary Material Automatic Dosing Station, etc.

View as

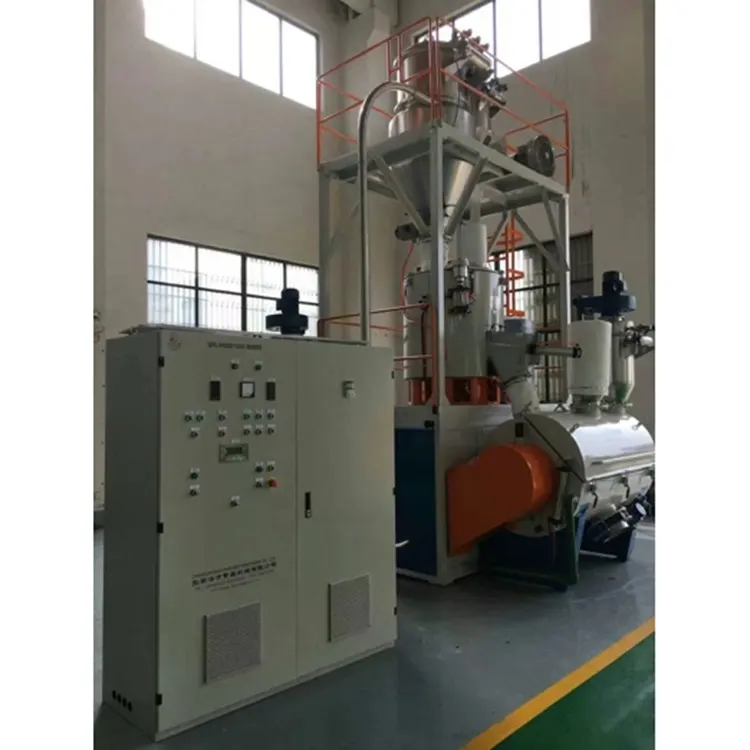

SRL-W Series Vertical Mixers

The China SRL-W Series Vertical mixers produced by FANCHANG Machinery are the core main equipment in the PVC blending and conveying system. After being tested in domestic and international markets for over three decades, they have firmly established a foothold in the plastic processing fields such as profiles, pipes, and sheets. This equipment not only inherits the high cost-effectiveness and durability of the FENGFAN brand, but also thanks to its technical standards and manufacturing processes that are in line with international standards, has been exported to many countries in Europe, America, Africa, and Southeast Asia, becoming the preferred matching equipment for many export-oriented plastic enterprises.

View More >> Send Inquiry >>

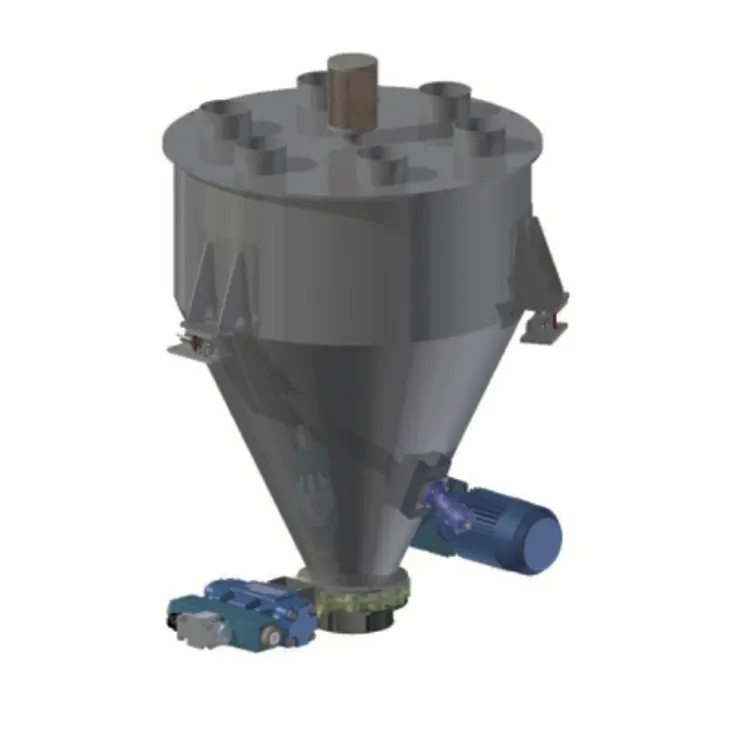

Automatic Additive Batching Scale

The China Automatic Additive Batching Scale developed by FANCHANG Machinery uses high-precision curved beam pressure sensors to ensure precise weighing; it employs synthetic material hoppers and pneumatic impacters to ensure thorough discharge without any stuck materials; it also features a unique sensor protection device to effectively prevent accidental damage to the sensor.

View More >> Send Inquiry >>

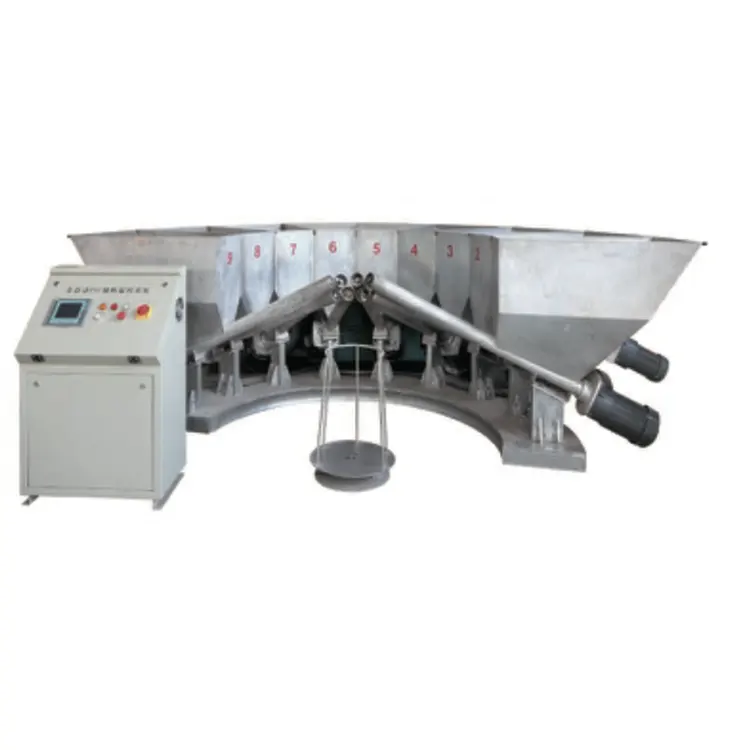

Auxiliary Material Automatic Dosing Station

The Auxiliary Material Automatic Dosing Station produced by FANCHANG Machinery, a manufacturer, is a production system that ensures quality, enhances efficiency, reduces costs, and enables digital management. It is a landmark equipment for the PVC industry's transformation from a labor-intensive, experience-driven model to a technology-intensive, data-driven manufacturing model. For PVC enterprises that pursue high-end products, large-scale production, and modern management, it is a must-have.

View More >> Send Inquiry >>

Dust-free Bag Dumping Station

FANCHANG Machinery is a professional manufacturer and supplier of Dust-free Bag Dumping Stations. This product is a mandatory equipment for environmental protection and safe production in PVC production lines. It is also an important investment for enterprises to reduce costs, increase efficiency, and achieve intelligent upgrades. Although there is an initial investment in equipment, its returns in improving the working environment for employees, enhancing the enterprise image, ensuring long-term stable production, and reducing overall costs make it a standard equipment for modern PVC factories.

View More >> Send Inquiry >>

Conical Finished Product Silo

The main function of the Conical Finished Product Silo, which is supplied by the FANCHANG Machinery factory, is to ensure production continuity, increase the overall line start-up rate and equipment utilization rate; ensure product quality consistency by using the homogenization function to upgrade "batch products" to "homogeneous goods"; enhance production flexibility and planning, allowing the production line to continuously produce at the optimal economic batch size without being restricted by packaging capacity and shipping plans; reduce operating costs, and minimize frequent start-ups and shutdowns due to mismatch between upstream and downstream processes, by achieving large-scale homogenization, reducing returns or downgrade losses caused by quality fluctuations in small batches.

View More >> Send Inquiry >>

Hot Mixer Dust Collector

The Hot Mixer Dust Collector produced by FANCHANG Machinery, made of waterproof and oil-resistant polyester needle-punched fabric and other high-temperature-resistant materials, is designed to handle the wet and hot gases discharged at the beginning of the hot mixing process and the possible low-melting-point lubricant vapors contained therein. It mostly adopts the pulse reverse-blowing cleaning method, where compressed air pulses are sprayed onto the filter bags instantaneously to achieve thorough cleaning and a high level of automation, making it suitable for continuous production conditions. The cleaning control is achieved through timed control to ensure that the system resistance remains within a reasonable range.

View More >> Send Inquiry >>

As a reliable SRL-W Series Vertical Mixers Unit manufacturer and supplier in China, we have custom options and volume discount pricing. Please just send us a quotation!
