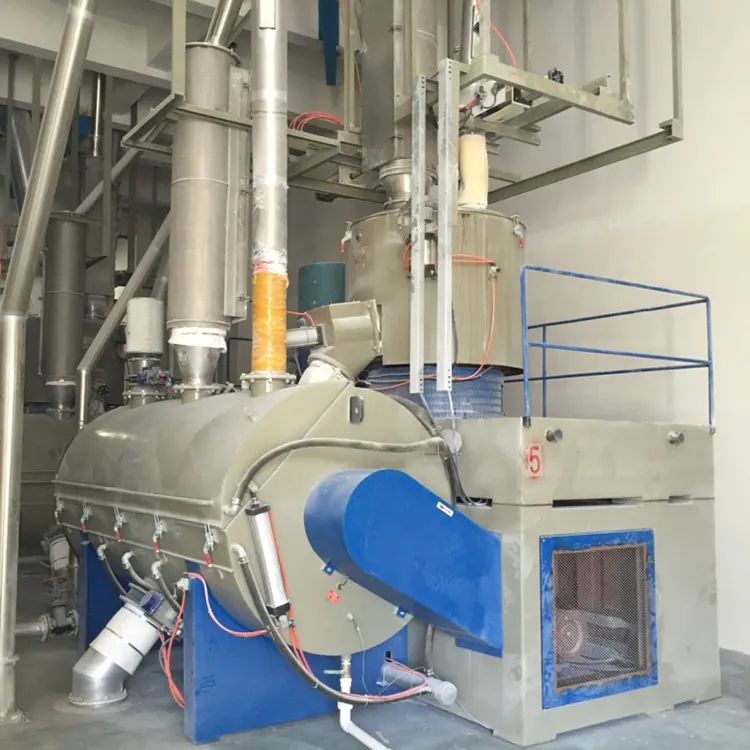

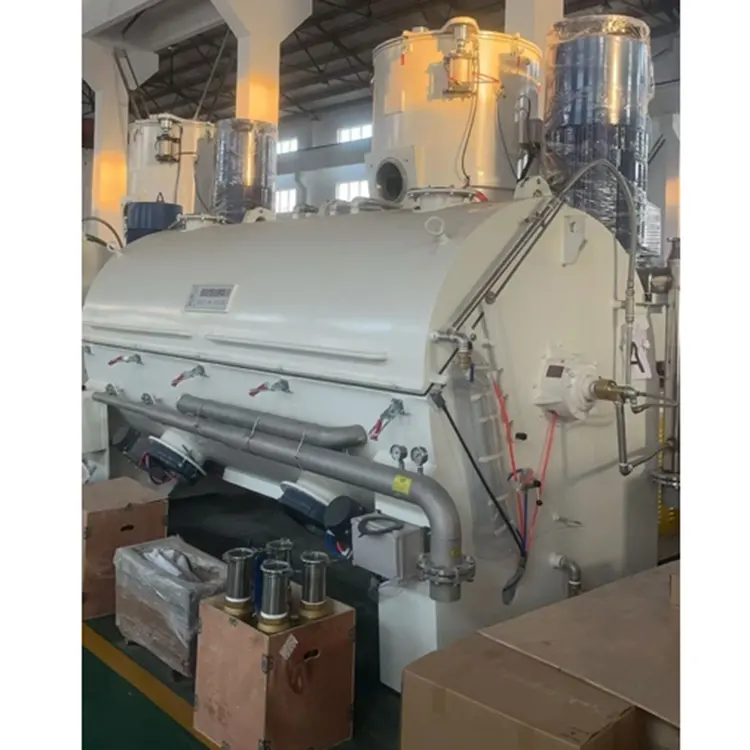

The SHL-W Series Horizontal mixers supplied by FANCHANG Machinery are new designs based on the improvement of the vertical mixing unit. They have excellent mixing quality, with strong shearing and three-dimensional motion ensuring that the materials are highly dispersed and uniform at the microscopic level. Even for additives with extremely small amounts (such as colorants, stabilizers), they can achieve perfect distribution.
The mixing efficiency is extremely high. With high-speed shearing and convection, the mixing, drying or soaking process can be completed in a few minutes. The self-generated heat effect causes the heat to be generated from the inside of the materials, combined with jacket heating, the temperature is uniform, avoiding local overheating.
They integrate multiple processes such as mixing, pre-plasticization/gelation, drying, soaking/coating. They are mainly used for the mixing, stirring, drying, coloring and other processes of various materials in industries such as plastics, rubber, and daily chemical products. They are ideal equipment for producing plastic sheets, pipes, profiles and degradable plastics. They have significant overall advantages such as low comprehensive usage cost, good production efficiency throughout the life cycle, less raw material and auxiliary material loss, and high automation level.
1. The SHL-W Series Horizontal mixers adopt the negative pressure mixing principle, resulting in better mixing efficiency;
2. All parts in contact with the materials are made of stainless steel or aluminum alloy, ensuring no contamination of the materials;
3. All electrical instruments are imported brand products and can be controlled by PLC programmable logic controller for fully automatic operation and monitoring;
4. The process is highly adaptable. By precisely controlling the speed, temperature and time, it can flexibly meet different formula and process requirements (such as gentle mixing or strong plasticizing);
5. It has a high degree of automation and fast mixing speed;
6. The paddles are made of precision stainless steel, pressure cast, with a wear-resistant coating on the surface, increasing their lifespan, and passing dynamic and static balance tests;
7. It improves the cooling effect, reduces the consumption of cooling water, has good cooling effect, short mixing time, and is convenient and fast to clean, enabling efficient production.
Our products are exported to multiple countries in Europe, America, Africa, and Southeast Asia, and have received widespread recognition and multiple repeat purchases from users. Customers can also select and configure vacuum negative pressure feeding, spiral feeding, pipe chain conveying equipment, silos, vibrating screens, liquid oil scales, level meters, dehumidification and dust removal, and other plastic machinery equipment according to their own needs.
The agitator blades of the SHL-W Series Horizontal mixers adopt an advanced spiral mixing structure, ensuring that the entire container of the cold machine has no dead corners. It features a fast cooling speed and clean discharge, and the mixing effect has reached the advanced level of foreign countries.
