Helical Mixer

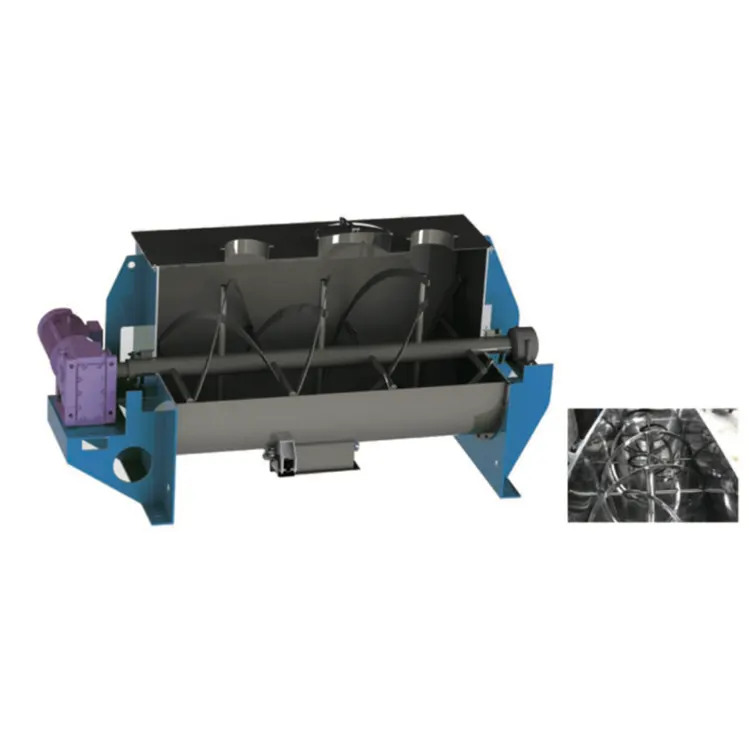

The Helical mixer produced by FANCHANG Machinery, featuring a dual screw design, enables the complete circulation and replacement of materials within the cylinder without any dead zones. Through convection and diffusion with low shear mixing, the original shape of the material particles is minimally disrupted.

This product has wide adaptability to materials and can not only efficiently mix dry powders and particles, but also its gentle and continuous action makes it particularly suitable for handling semi-wet, viscous, pasty or materials with significant density differences. The full-volume mixing and low residue, with the extremely small gap between the screw blades and the inner wall of the cylinder, allows for nearly full-volume mixing and an extremely low residual rate during discharge.

It has excellent sealing performance and adopts a fully enclosed structure, equipped with various sealing forms, suitable for situations with solvent evaporation, the need for inert gas protection, or high cleanliness requirements. It can integrate multiple functions, with the cylinder capable of being equipped with a jacket for heating, cooling or insulation; and an additional liquid spraying device can be installed to achieve solid-liquid mixing.

The latest optimized double-screw belt mixing structure is adopted, which can achieve uniform mixing effect without dead corners; it is made of precise stainless steel through pressure casting and has passed dynamic and static balance tests, demonstrating excellent durability and stability.

Product features

1. Our WLD-K0.05(capacity 0.05 cubic meters)-WLD-K4 Helical mixer is made of high-quality stainless steel and combines laser welding and meticulous processing techniques;

2. It is compatible with high-quality, well-known electrical and instrument brands, and can be controlled by PLC program-controlled computers to achieve fully automatic operation and monitoring;

3. The mixing uniformity is high, with no dead corners. The double screw belts ensure the high uniformity of the materials through forced convection, and can achieve perfect mixing even for materials with extremely different ratios;

4. It has good protection for material properties, especially suitable for handling fragile particles, fibrous materials, materials that easily aggregate but are sensitive to shear (such as certain foods, medicines, high-value chemicals, etc.), and can maintain the original physical properties of the materials;

5. It has strong processing ability for sticky materials, with continuous axial pushing and wall scraping effects, which can effectively overcome the adhesive resistance of the materials and prevent the materials from adhering to the cylinder wall and shaft, making it an ideal choice for processing paste-like and dough-like materials;

6. The energy consumption is relatively low and stable, and the energy consumption per unit output is competitive among similar mixing equipment;

7. It runs smoothly, has low noise, has a long service life, is easy to maintain, and has low maintenance costs;

8. It complies with high standards of hygiene and safety, with the inner surface polished to high precision (meeting food grade and pharmaceutical grade requirements), without cleaning dead corners, and is easy to achieve in-situ cleaning, fully meeting various strict standards.

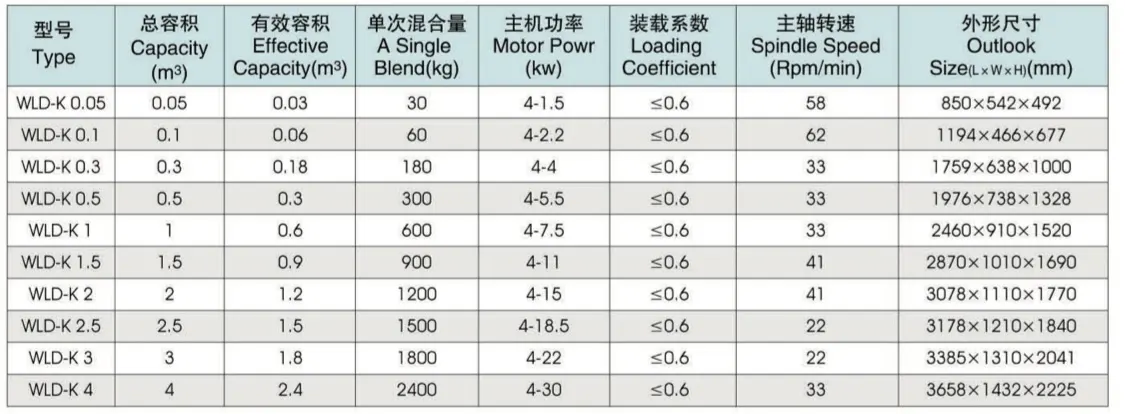

Main technical parameters
